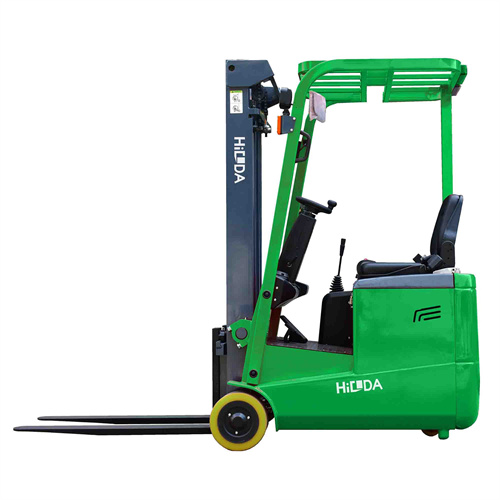

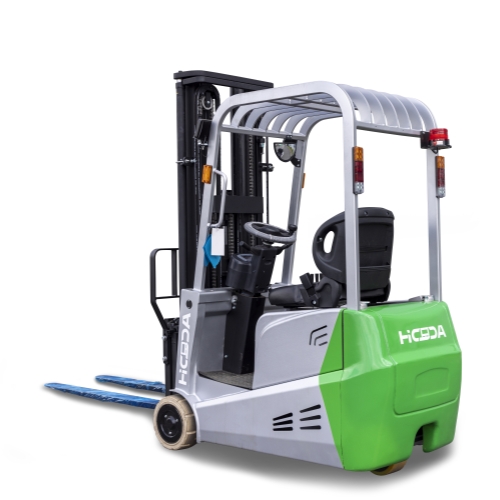

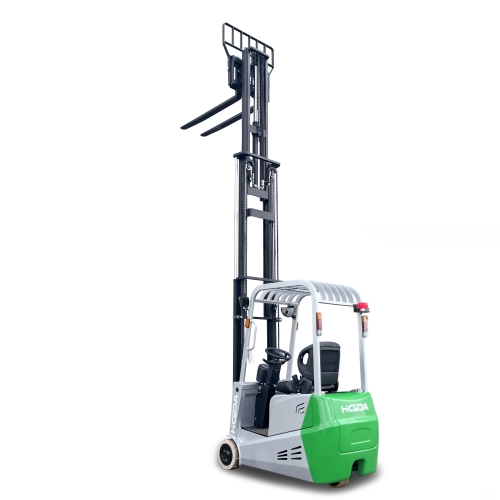

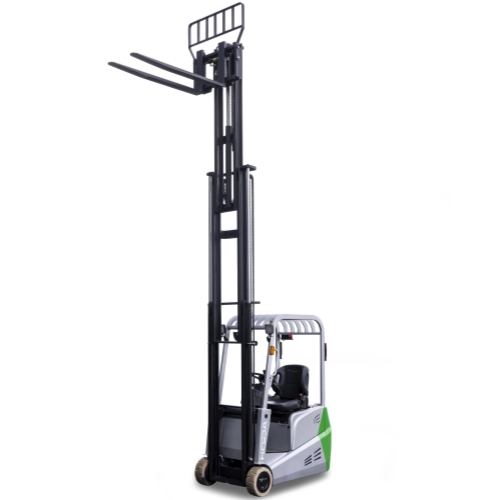

1 – 1.5 ton Electric Mini Forklift For Narrow Aisle
Hicoda is an experienced manufacturer for electric forklifts. Covering capacity of 1 to 1.5 tons, with up to 4.5 meters lifting height, with small turning radius design, our CPDH series electric mini forklifts are suitable for limited spaces.
| Brand: | HICODA |
| Model: | CPDH10/15 |
| Capacity: | 1 – 1.5 tons |
| Lifting Height: | 3 – 4.5 meters |
| Shipping Port: | Hefei / Nanjing / Shanghai, China |
Product Categories
OPERATION VIDEO
ADVANTAGES
- Curtis controller with excellent performance
- Free-maintenance AC drive motor
- Small turning radius design for narrow aisle

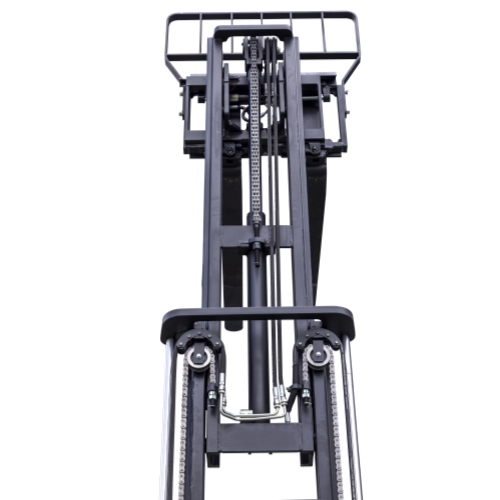

- Wide vision mast design
- Low gravity to enhance stability

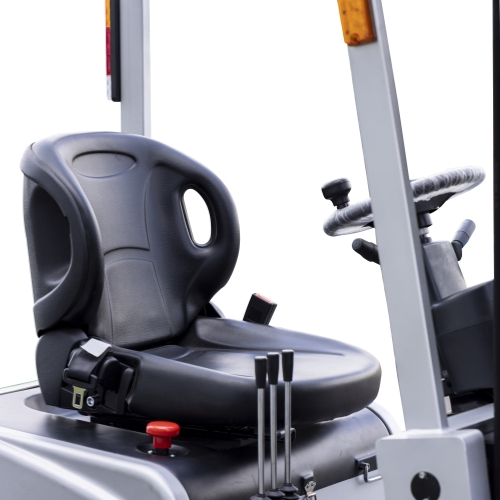

- Spacious operation space
- All-round safety guarantees
TECHNICAL PARAMETERS
| Manufacturer | HICODA | ||
| Model | CPDH10 | CPDH15 | |
| Power Type | Battery | ||
| Operation Type | Seated | ||
| Rated Capacity | Q(kg) | 1000 | |
| Load Center | C(mm) | 500 | |
| Front Overhand | x(mm) | 168 | 175 |
| Wheelbase | y(mm) | 975~990~1020 | 996~1018~1060 |
| Service Weight(incl.battery) | kg | 1700 | 2250 |
| Weight distribution when loaded，drive side/load side | kg | 335 /2365 | 350/3400 |
| Weight distribution when unloaded，drive side/load side | kg | 1045 /655 | 1450/800 |
| Wheel Types | PU | PU/Solid rubber | |
| Load Wheel | mm | φ285×100 | φ305×140 |
| Drive wheel | mm | φ230×110 | φ280×135 |
| Number of wheels,,front/rear(x=drive wheel) | 2 / 1X | ||
| Wheel tread,load side | b11(mm) | 804 | 870 |
| Mast tilting | α/β(°) | 2/4 | |
| Mast closed height | h1(mm) | 1995 | 2065 |
| Lift height | h3(mm) | 3000 | |
| Mast extended height | h4(mm) | 3530 | 3560 |
| Overhead guard height | h6(mm) | 1965 | |
| Seat height | h7(mm) | 930 | |
| Overall length | L1(mm) | 2330 | 2415 |
| Length to fork face | L2(mm) | 1410 | 1495 |
| Overall width | b1/b2(mm) | 912 | 1010 |
| Fork size | l/e/s(mm) | 920/100/35 | |
| Fork carriage width | b3(mm) | 620 | 680 |
| Fork outside width | b5(mm) | 220～620 | 220～680 |
| Mast ground clearance | m1(mm) | 90 | 80 |
| Body ground clearance | m2(mm) | 90 | |
| Aisle width for pallet 1000*1200mm, C=500mm | Ast(mm) | 2760 | 2845 |
| Aisle width for pallet 800*1200mm, C=600mm | Ast(mm) | 2870 | 2960 |
| Turning radius | Wa(mm) | 1255 | 1325 |
| Driving speed, laden/unladen | km/h | 6/7 | |
| Lifting speed, laden/unladen | mm/s | 150/190 | 125/260 |
| Lowering speed, laden/unladen | mm/s | 200/130 | 200/210 |
| Traction capacity, laden/unladen (S2-5min) | N | / | / |
| Max.Gradeability, laden/unladen (S2-5min) | %(tanθ ) | 8/10 | |
| Brake type | Hydraulic+Electromagnetic | ||
| Driving motor(S2-60min) | kw | 1.5 | 2.3 |
| Lifting motor(S3-15%) | kw | 2 | 3.5 |
| Battery voltage/capacity | V/Ah | 24/300 | 24/480 |
| Steering system | EPS | EPS | |
| Lithium battery configuration | V/Ah | 24/200 | 24/300 |

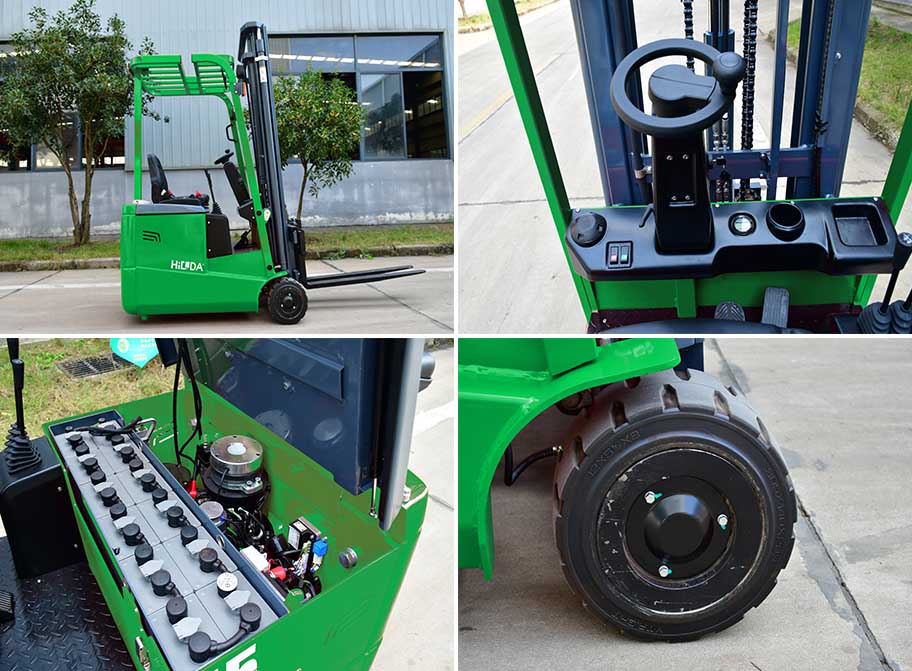

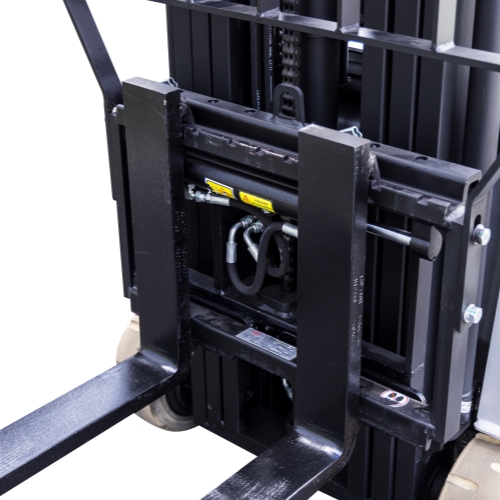

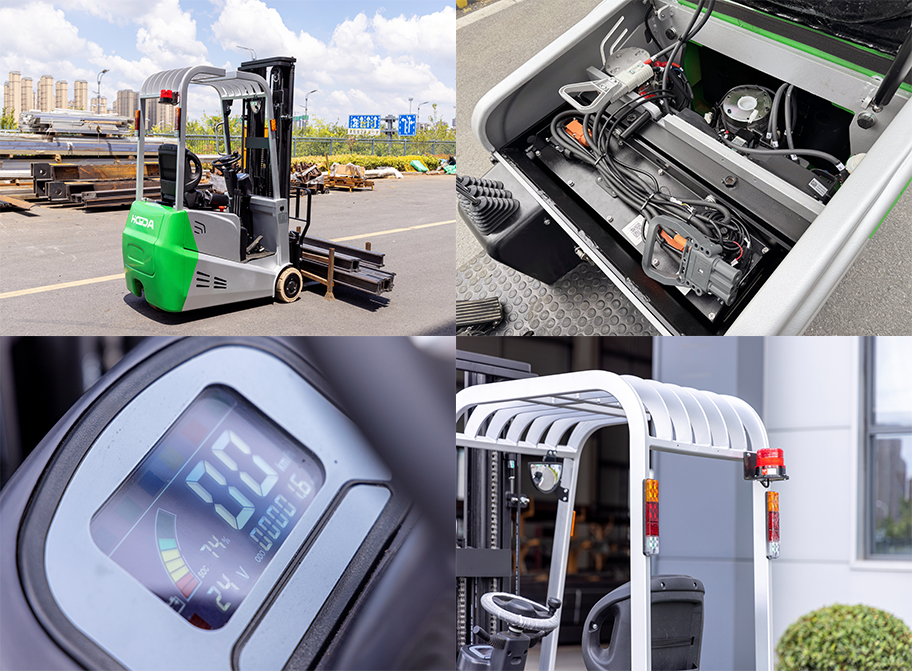

DETAILS
