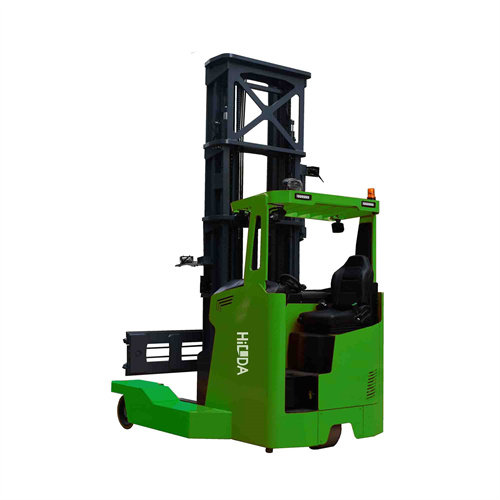

2.5 – 3 ton Electric Sit-On Multidirectional Reach Truck With Side Driving Mode
Hicoda is a professional manufacturer of electric multidirectional reach trucks, which cover capacity of 2.5 – 3 tons, with up to 8.5 meters lifting height. Our CLDH series electric sit-on multidirectional reach trucks can handling long materials under side driving mode. Your aisle width could be saved much with our moving mast design. This model is suitable for woods, pipes and aluminum profiles industries.
| Brand: | HICODA |
| Model: | CLDH25/30 |
| Capacity: | 2.5 – 3 tons |
| Lifting Height: | 3 – 8.5 meters |
| Shipping Port: | Hefei / Nanjing / Shanghai, China |
Product Categories
OPERATION VIDEO
ADVANTAGES
- Design for long materials handling
- Comfortable sit-on operation
- Curtis controller with excellent performance
- Free-maintenance full AC system
- Straight driving, side driving, oblique driving and in-suits driving modes
- Moving mast design to save aisle width
- Strong structure for durable use
- All-round safety guarantees
TECHNICAL PARAMETERS
| Manufacturer | HICODA | ||
| Model | CLDH25 | ||
| Power Type | Battery | ||
| Operation Type | Seated | ||
| Rated Capacity | Q(kg) | 2500 | |
| Load Center | C(mm) | 600 | |
| Distance from center of front wheel to fork face | x(mm) | 492 | |
| Front Overhand | x1(mm) | 248 | |
| Wheelbase | y(mm) | 1700 | |
| Service Weight(incl.battery) | kg | 5150 | |
| Wheel Types | PU | ||
| Load Wheel | mm | φ343×130 | |
| Drive wheel | mm | φ400×160 | |
| Number of wheels,,front/rear(x=drive wheel) | 2/1X | ||
| Wheel tread,load side | b11(mm) | 1500 | |
| Fork Tilt front/rear | α/β(°) | 1/5 | |
| Mast closed height | h1(mm) | 4329 | |
| Free lift height | h2(mm) | 3366 | |
| Lift height | h3(mm) | 10000 | |
| Mast extended height with load-backrest | h4(mm) | 10964 | |
| Overhead guard height | h6(mm) | 2245 | |
| Seat height | h7(mm) | 1186 | |
| First stage height | h8(mm) | 390 | |
| Leg height | h10(mm) | 453 | |
| Overall length | l1(mm) | 2384 | |
| Length from tail to fork face | l2(mm) | 1464 | |
| Overall length | b1/b2(mm) | 1790/1270 | |
| Fork size | l/e/s(mm) | 920×100×45 | |
| Load backrest height | b3(mm) | 2360 | |
| Fork outside width | b5(mm) | 400-2300 | |
| Inner leg width | b4(mm) | 977 | |
| Reach distance | l4(mm) | 740 | |
| Mast clearance | m1(mm) | 75 | |
| Side driving aisle width(pallet1000x1000) | Ast(mm) | 2665 | |
| Turning radius | Wa(mm) | 1987 | |
| Driving speed, laden/unladen | km/h | 8.5/10 | |
| Lifting speed, laden/unladen | mm/s | 260/330 | |
| Lowering speed, laden/unladen | mm/s | 300/250 | |
| Max gradeability, laden/unladen(S2-5min) | %(tanθ ) | ≤10 | |
| Brake type | Electromagnetic type | ||
| Driving motor(S2-60min) | kw | 8 | |
| Lifting motor(S3-15%) | kw | 15 | |
| Battery voltage/capacity | V/Ah | 48/560 | |

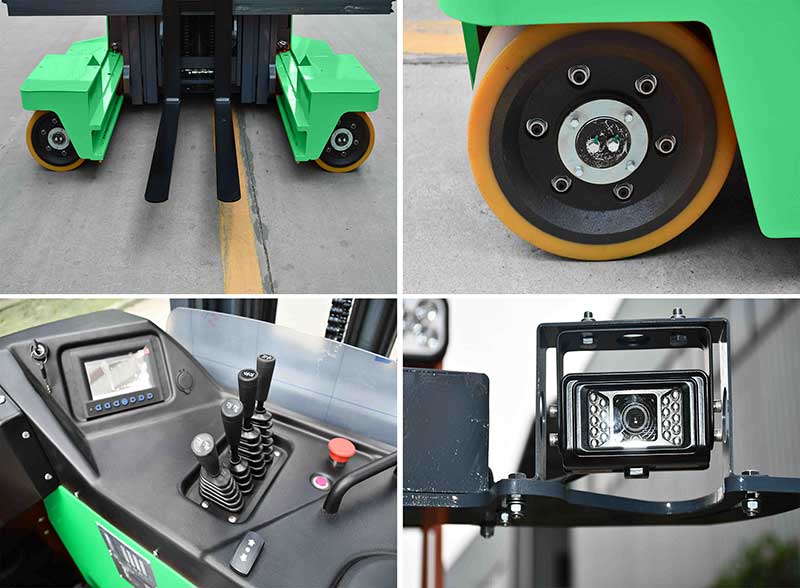

DETAILS
