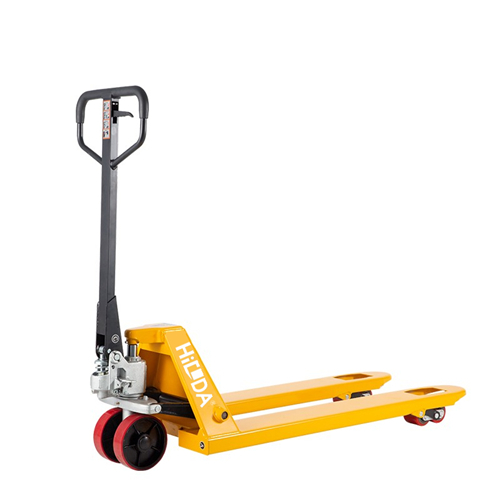

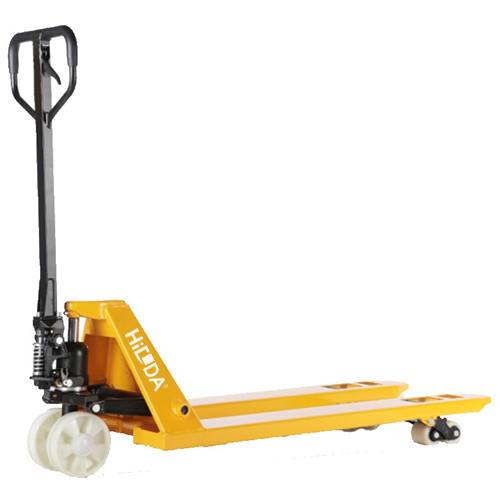

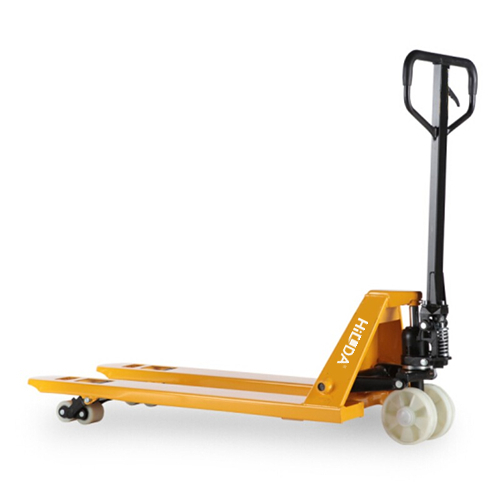

2 – 5 ton Hand Pallet Truck With Strong Structure
Hicoda is a professional manufacturer for hand pallet trucks. Covering capacity of 2 to 3 tons, with strong structure design and small turning radius, our HPL series hand pallet trucks can work perfectly in supermarkets, warehouses or plants.
| Brand: | HICODA |
| Model: | HPL20/25/30/35/50 |
| Capacity: | 2 – 5 tons |
| Lifting Height: | 115mm |
| Shipping Port: | Hefei / Nanjing / Shanghai, China |
Product Categories
ABOUT US

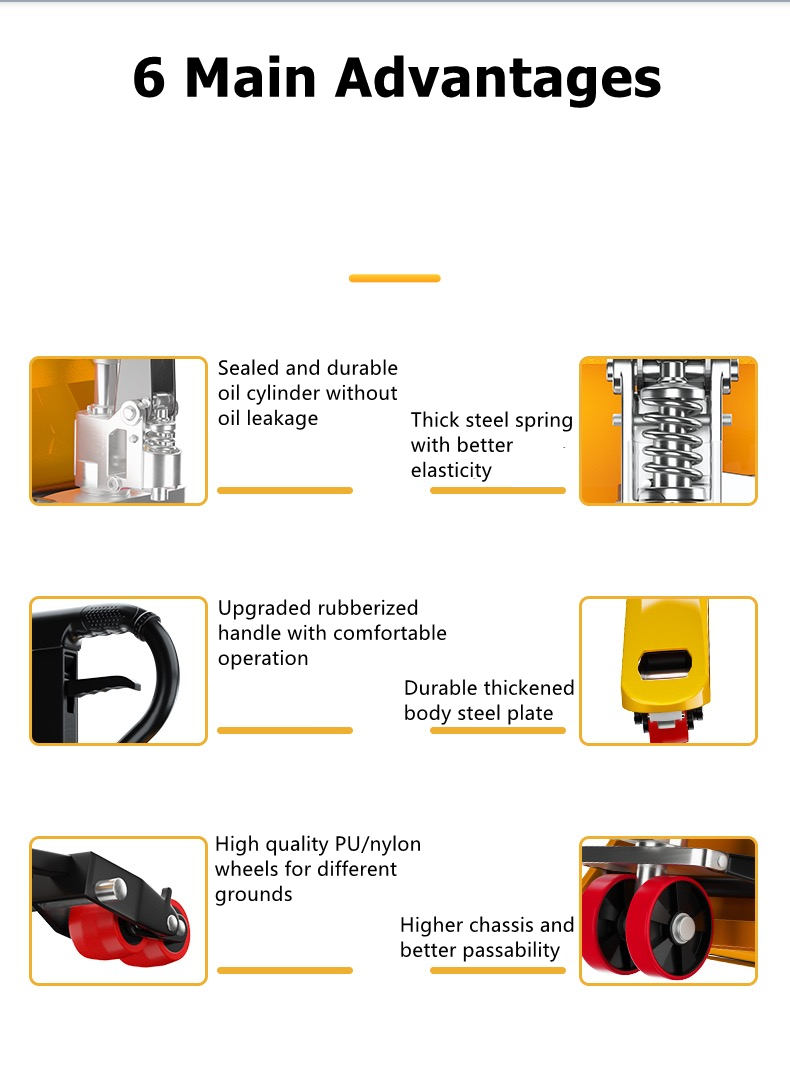

ADVANTAGES

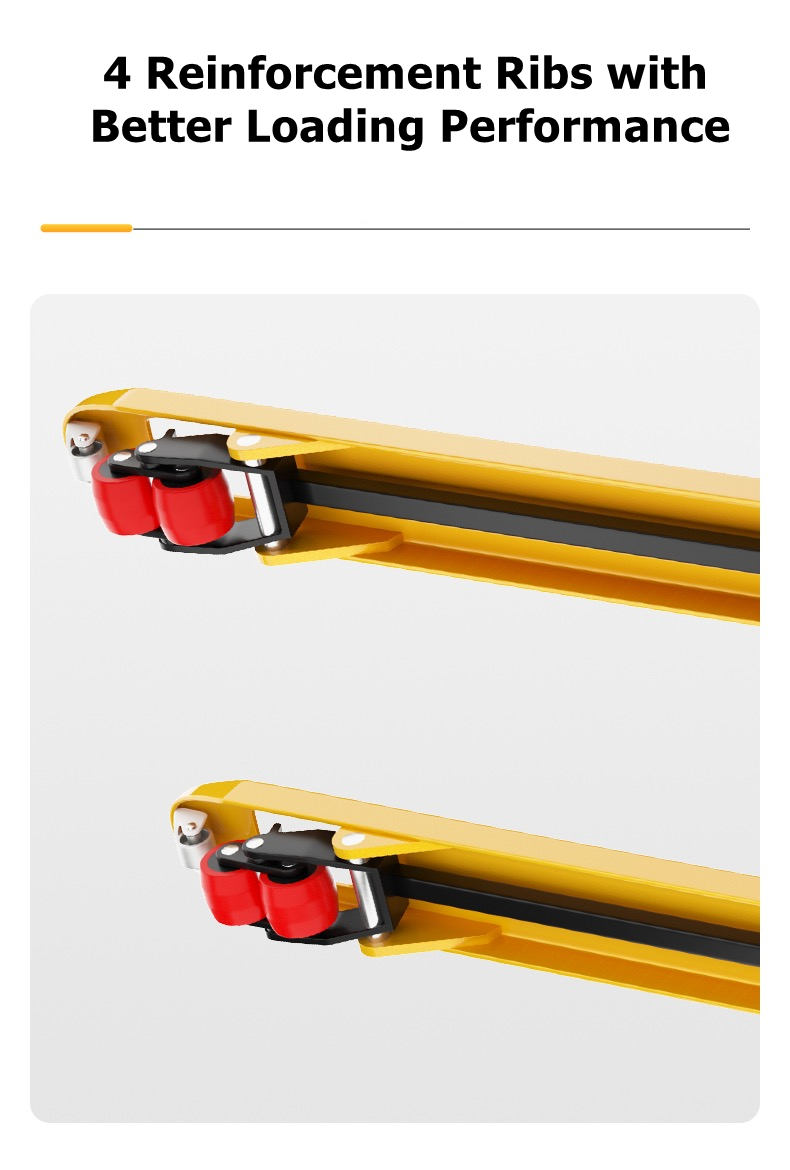

- Strong structure to guarantee excellent performance
- Compact design for narrow aisle
- All-round safety guarantees
- Quick delivery within 7 days
TECHNICAL PARAMETERS
| Manufacturer | / | HICODA | ||||
| Model | / | HPL20 | HPL25 | HPL30 | HPL35 | HPL50 |
| Operation type | / | Manual | ||||
| Rated capacity | Q(kg) | 2000 | 2500 | 3000 | 3500 | 5000 |
| Load center | C(mm) | 600 | ||||
| Load distance, center of drive axle to fork | x(mm) | 945 | ||||
| Wheelbase | y(mm) | 1160 | ||||
| Service weight | kg | 65 | 68 | 71 | 76 | 81 |
| Wheel type | / | Nylon/PU | ||||
| Front wheel size | mm | Φ180×50 | ||||
| Rear wheel size | mm | Φ80×70 | ||||
| Number of wheels,front/rear(x=drive ) | / | 4/2X | ||||
| Wheel tread,front | b10(mm) | 120 | ||||
| Wheel tread,rear | b11(mm) | 395 | ||||
| Lift height | h3(mm) | 115 | ||||
| Lowered fork height | h13(mm) | 80 | ||||
| Handle height, min./max. | h14(mm) | 1200 | ||||
| Overall length with forks | l1(mm) | 1530 | 1580 | |||
| Overall length without forks | l2(mm) | 380 | 430 | |||
| Overall width | b1(mm) | 540 | ||||
| Fork outer width | b5mm) | 550/685 | ||||
| Fork size | s/e/l(mm) | 55/155/1150 | ||||
| Body ground clearance | m2(mm) | 30 | ||||
| Aisle width for pallet 1000*1200mm, C=500mm | Ast(mm) | 1525 | 1575 | |||
| Aisle width for pallet 800*1200mm, C=600mm | Ast(mm) | 1725 | 1775 | |||
| Turning radius,pedal off /on | Wa(mm) | 1266 | 1290 | |||

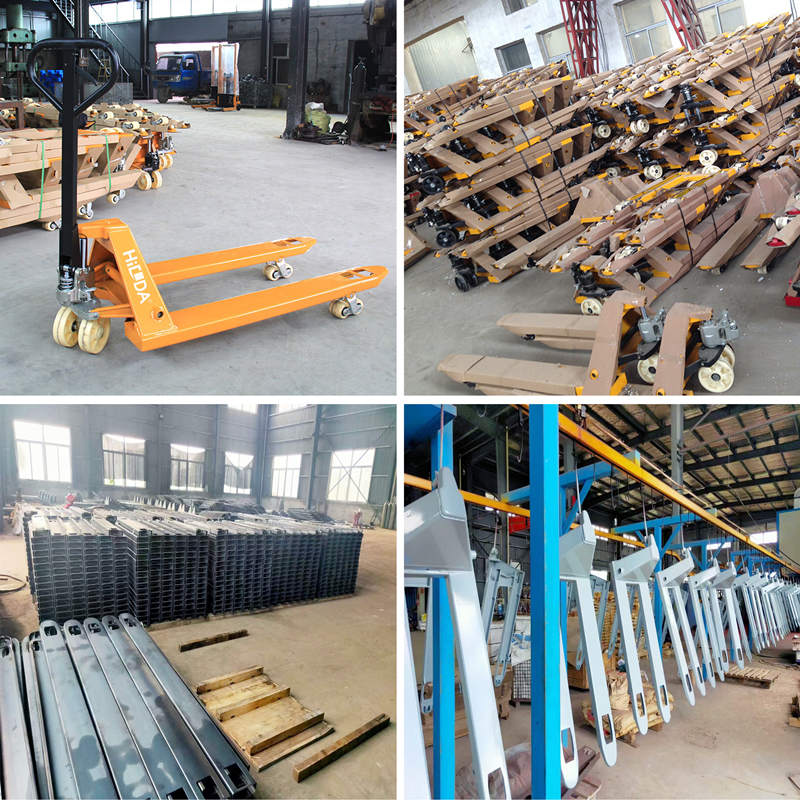

DETAILS
