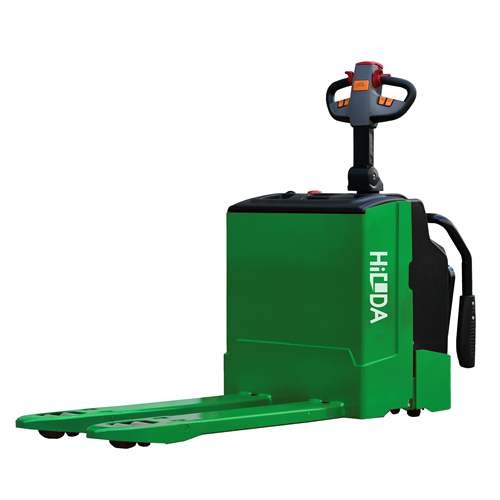

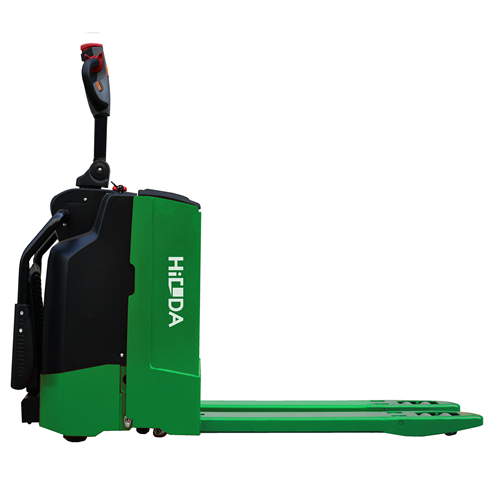

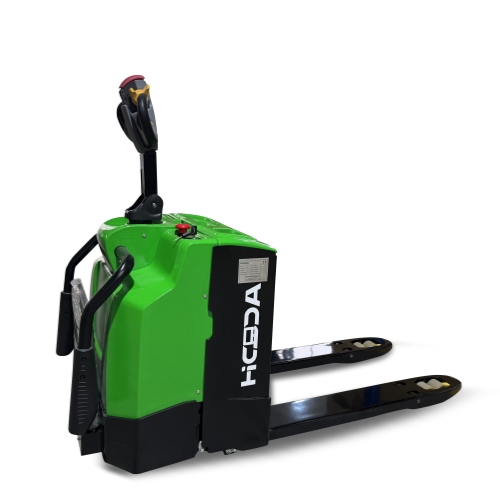

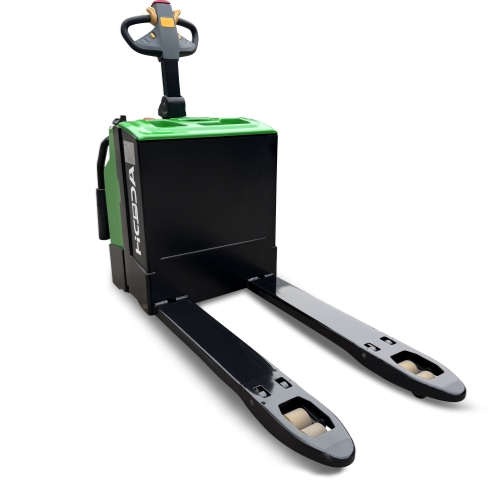

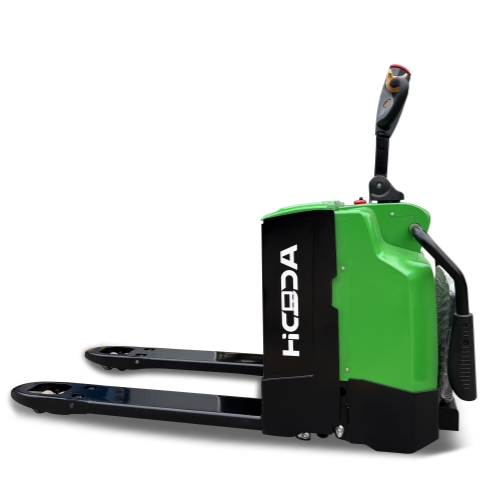

2 – 6 ton Electric Stand-On Pallet Truck With AC Drive Motor
Hicoda is a professional manufacturer for electric pallet trucks. Covering capacity of 2 to 6 tons, with strong structure and green power, our CBDS series electric pallet trucks are suitable for mid/long-distance handling in warehouses or plants.
| Brand: | HICODA |
| Model: | CBDS20/25/30/40/50/60 |
| Capacity: | 2 – 6 tons |
| Lifting Height: | 120mm |
| Shipping Port: | Hefei / Nanjing / Shanghai, China |
Product Categories
OPERATION VIDEO
ADVANTAGES
- Curtis controller with excellent performance
- Free-maintenance AC drive motor

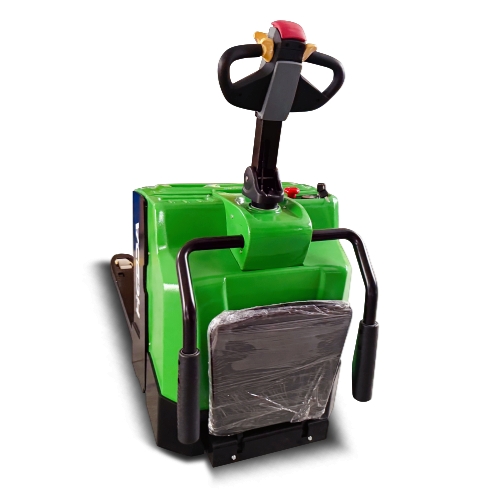

- Standing pedal for long-distance handling
- Strong structure for durable use
- All-round safety guarantees
TECHNICAL PARAMETERS
| Manufacturer | HICODA | |||
| Model | CBDS20 | CBDS25 | CBDS30 | |
| Power type | Battery | |||
| Operation type | Stand on | |||
| Rated capacity | Q(kg) | 2000 | 2500 | 3000 |
| Load center | C(mm) | 600 | ||
| Service weight(incl. battery) | kg | 810 | 830 | 850 |
| Wheel type | PU | |||
| Load wheel size | mm | Φ80×80 | ||
| Drive wheel size | mm | Φ250×75 | ||
| Balance wheel size | mm | Φ115×55 | ||
| Number of wheels,load/drive(x=drive )+balance | 4/1X+2 | |||
| Overall height | mm | 1450 | ||
| Max. Lift height | mm | 200 | ||
| Lowered fork height | mm | 85 | ||
| Overall length, pedal off /on | mm | 1925/2320 | ||
| Overall width | mm | 808 | ||
| Fork outside size | mm | 540/685 | ||
| Fork length | mm | 1150/1220 | ||
| Single fork width | mm | 185 | ||
| Turning radius, pedal off | Wa(mm) | 1746 | ||
| Drive motor | kw | 1.5 | 2 | 2.5 |
| Lift motor | kw | 0.8 | 1.2 | |
| Battery voltage/capacity | V/Ah | 24/210 | ||
| Steering System | EPS | |||

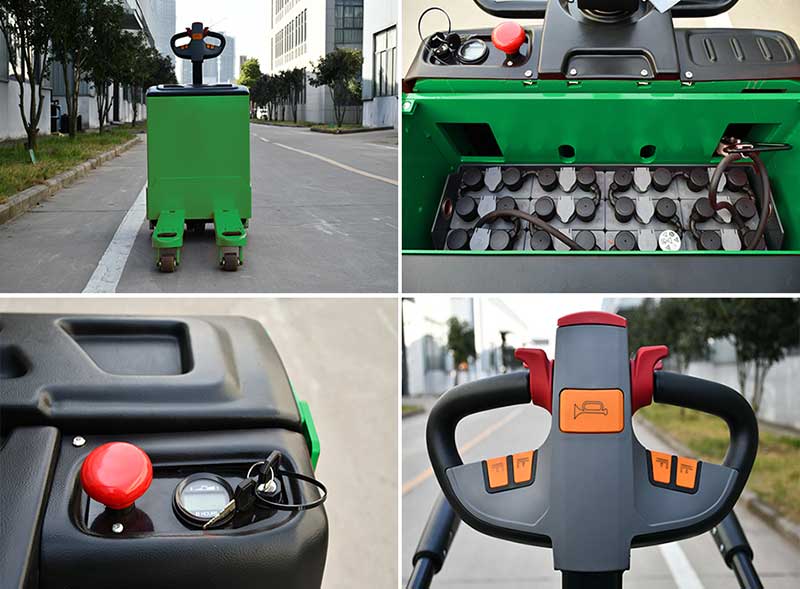

DETAILS
